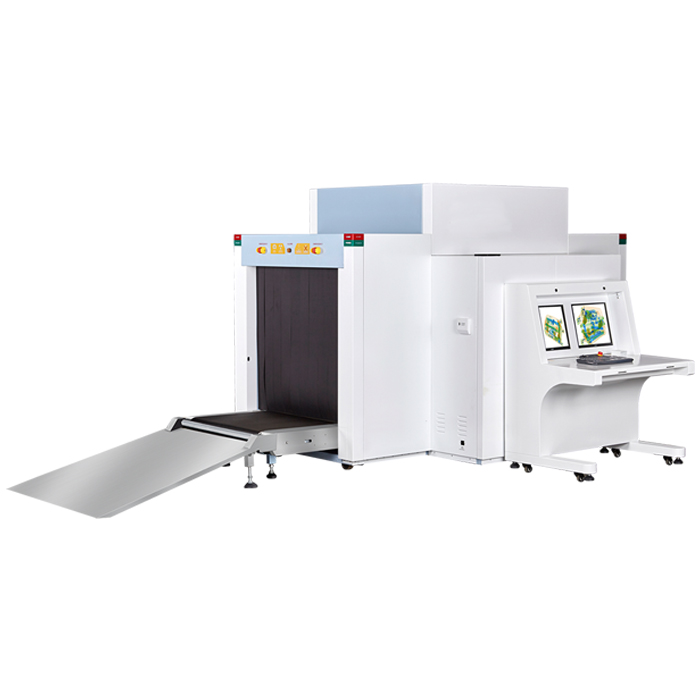

XLD-100100D X-ray baggage machine

XLD-100100D X-ray baggage machine

上市日期: 2017-12-20

Product parameters:

Tunnel size:1000(L)*1000(W)mm

Conveyor Speed(m/s):0.22

Conveyor Max Load(kgs):200

Conveyor height(mm):310

Unit weight:1350kgs

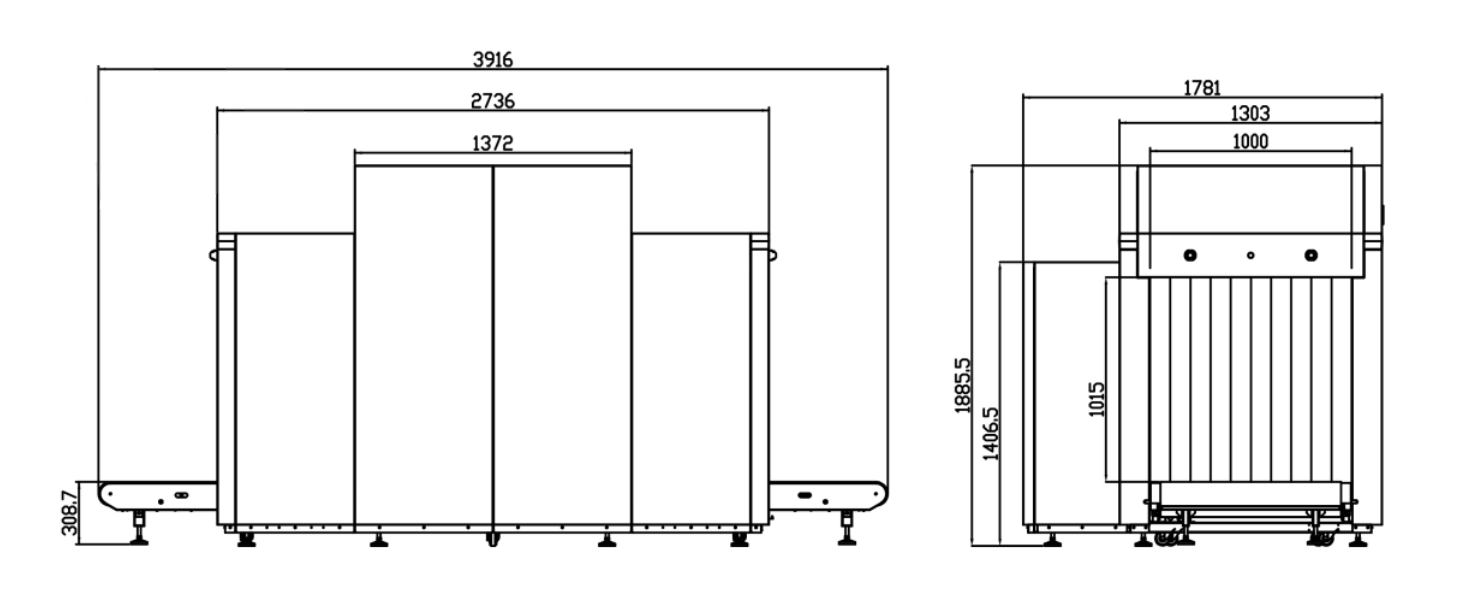

Unit size:3916(L)*1781(W)*1648(H) mm

Generator:2* 160KV, oil cooling, one from bottom to top, one from left to right

Penetration:Typical 40mm steel, guarantee 38mm steel

Wire Resolution:Typical AWG40, guarantee AWG38

Quick details:

* MTBF: More than 10000 hours

* Drugs and explosives inspection

* ATD - Automatic Threat Detection

* Windows operating system, dual energy

* Automatic built in test and self diagnosis

* Threat alert and material classification

* Japan Hammatsu detection and UK Sens-tech board

* Two generators, two view perspective dual energy imaging

X-Ray dosage /inspection

Typical 3.2μGy/h, guarantee 4.2μGy/h

Boundary Leakage

Typical 1.5 μGy/h, guarantee 2.0 μGy/h

Power consumption

Max.1.5 KVA



Film Safety

Guarantee ASA/ISO1600 Film


CPU:  G1610 2.6G, hard drive 500G, Storage 2G

Display monitor

Dell or Acer, 17" LED screen, resolution 1280*1024

Operation System

Windows XP

Operation Table

Screen console

Image Enhancement

1-64times enlargement continuity, Color/BW, negative,high/low penetration, organic /inorganic, Stripping, general enhancement, and pseudo color,etc.

Image Archive

Up to 100,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP, XF, PNG, TIFF, GIF six formats.

Image Recall


All preceding images re-callable,retrieval.


Other Functions

Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc.


Network Applications

Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional).


Operation temperature/Humidity

0C‐45C / 5%-95%(non-condensing)

Storage temperature/Humidity

-40C‐70C / 5%-95%(non-condensing)

Operation Power

220VAC(±10%) 50±3Hz

100VAC,110VAC,120VAC,200VAC (optional)

XLD-100100D X-ray baggage machine

XLD-100100D X-ray machine technical parameters meet the technical conditions stipulated in the national standard “Micro Dose X-ray Security Inspection Equipment (GB15208-94)”.
