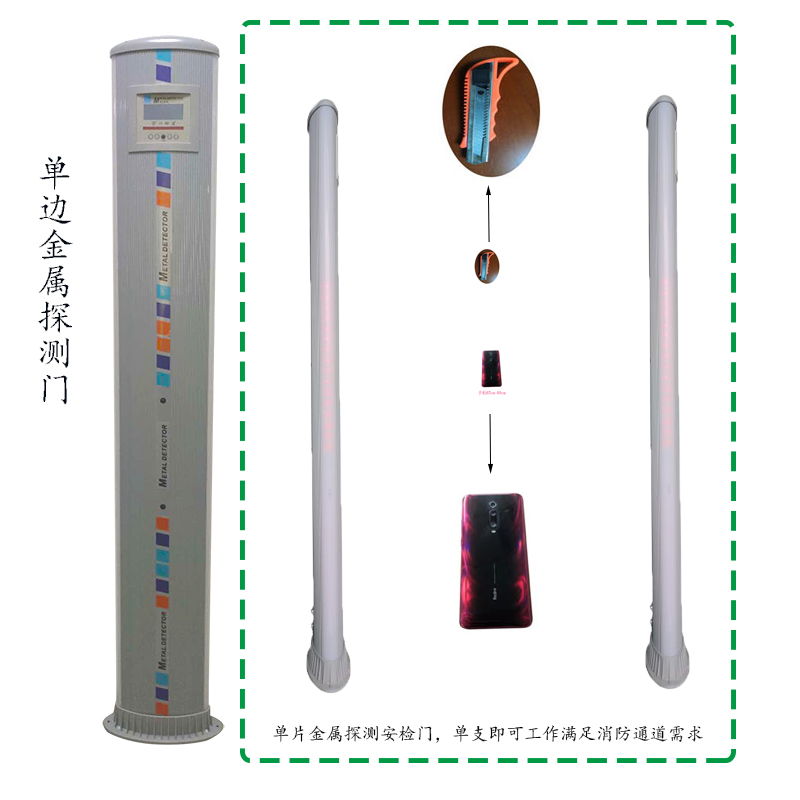

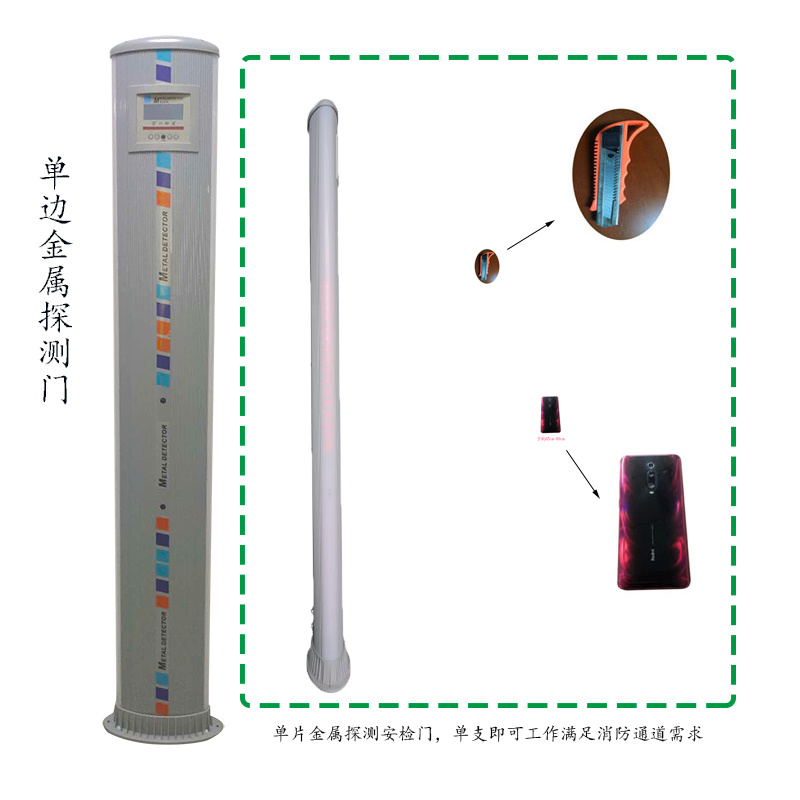

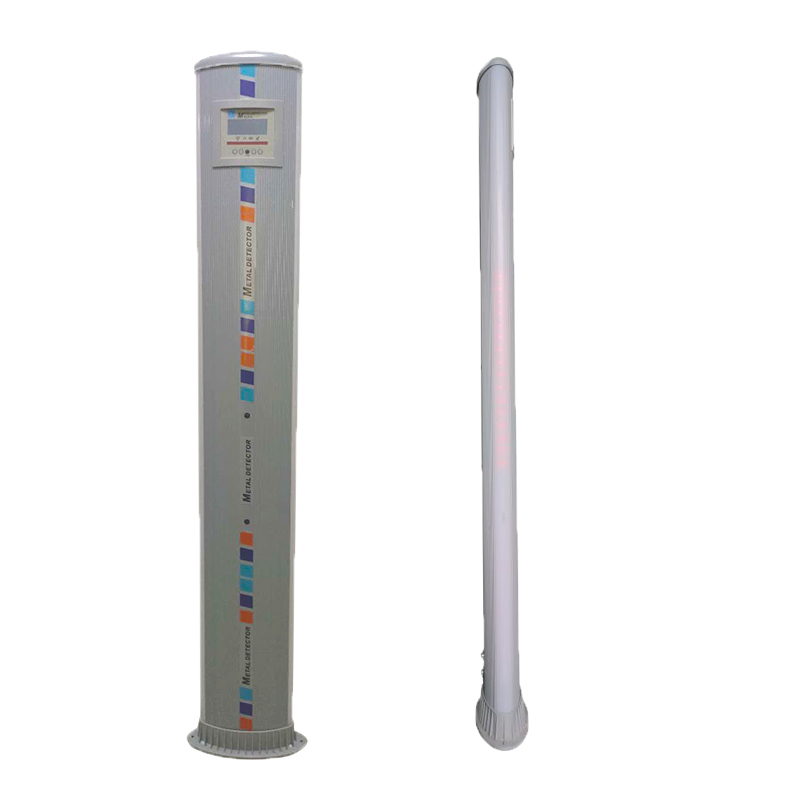

XLD-H  SINGLE PANEL WALK THROUGH METAL DETECTOR
产品名称:

XLD-H SINGLE PANEL WALK THROUGH METAL DETECTOR

上市日期: 2020-06-10

XLD-H  SINGLE PANEL WALK THROUGH METAL DETECTOR

XLD-H  SINGLE PANEL WALK THROUGH METAL DETECTOR

Quick Detail:

1. 5 detecting zones.

2. Light weight.

3. IP55 protection standard.

4. Both sides detection.

5. Dry contact.





Specifications:

Dimension

2020mm(H)X39mm(W)X160mm(D)

Gross Weight :

About 24kg

Work environment :

-20- +45

Complied standards

GB15210-94

Power supply:

100-220V,AC

Power:

<30W

Material of panel:

Water-proof ABS

Count detecting

Infrared sensor, mechanical anti-interference

Sensitivity:

Adjustable from 0 to 255

Alarm time:

1-25s

Alarm tone:

10

Alarm volume

0-255

Frequency:

4-8K







Description:



Product Process: Using strong ABS material, waterproof and light weight.



Infrared technology: through an infrared sensor, mechanical interference ability.



Adjustable area sensibility: Between the self-regulation can be 0-255 sensitivity, according to the users demands the removal of the actual sensitivity and carried by the body jewelry, belt buckle, metal zipper and so on.

Statistical functions: Intelligent and Statistics by the number of personnel and alarm times.



Easy to operate: Operation panel for the thin-film panel, high-brightness display panel can directly display alarm area, precise location of the instructions have been exploratory items, and have sound and light alarm simultaneously.



Password protection: Set authorization, password manager, allowing only authorized personnel to operate, which can effectively prevent others to modify the parameters.



Harmless to human body: On the human body, the heart pacemakers, pregnant women, magnetic floppy disks, tapes, video tapes and other sound.



Plug Play: There is no need to assemble the units. Open the package and set it up, it will work.



Applications:

Hotel, railway/bus/subway station, stadium, exhibition hall, etc
