Channel Width: Default width 120cm, maximum supported width 140cm.

 People Counting: Built‑in infrared people counting function to count inbound and outbound personnel.

 Alarm Modes: 1. Voice alarm 2. Buzzer alarm (two modes optional)

 Passive Alarm: Supported   Sensing Technology: Integrated 3D omnidirectional sensing technology.

 Interference Detection: Supports noise detection to identify interfering signals in the surrounding environment.

 Anti‑theft Modes: Supports multiple anti‑theft modes including AFI, EAS, EAS+AFI, DSFID and DSFID+EAS.

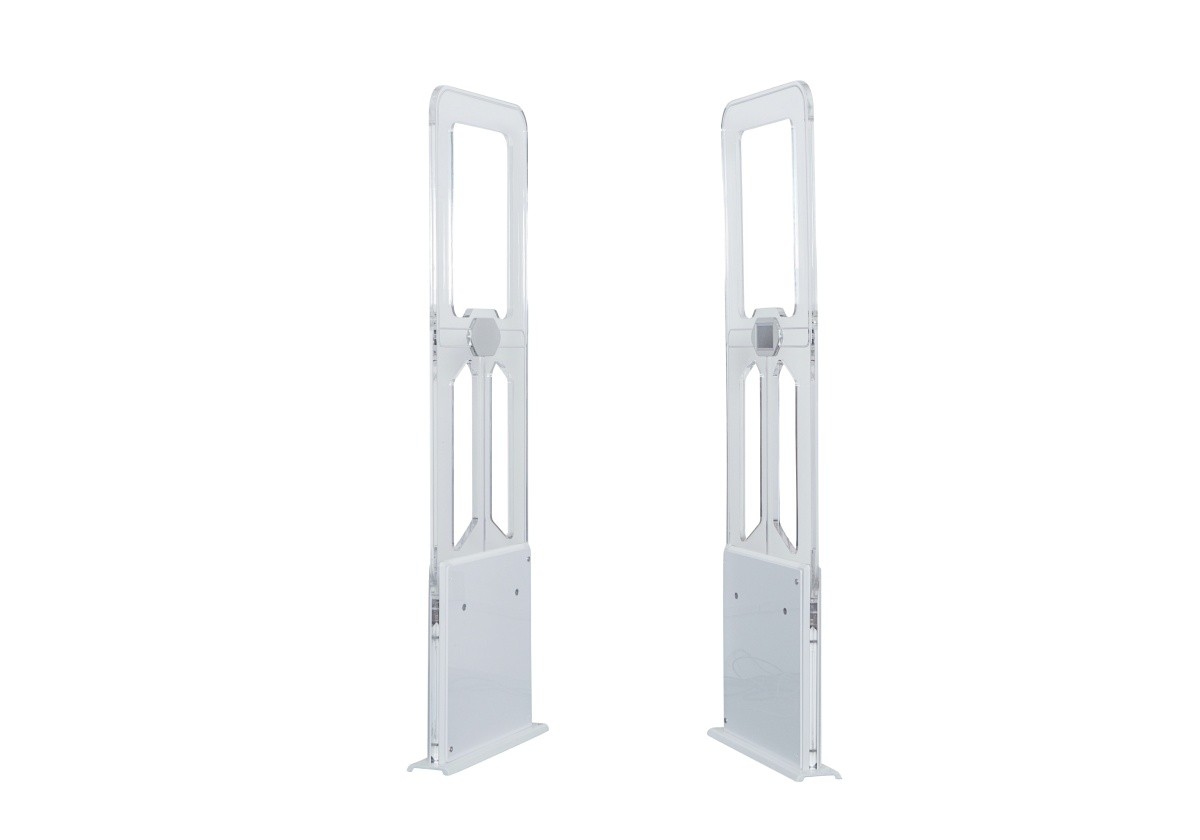

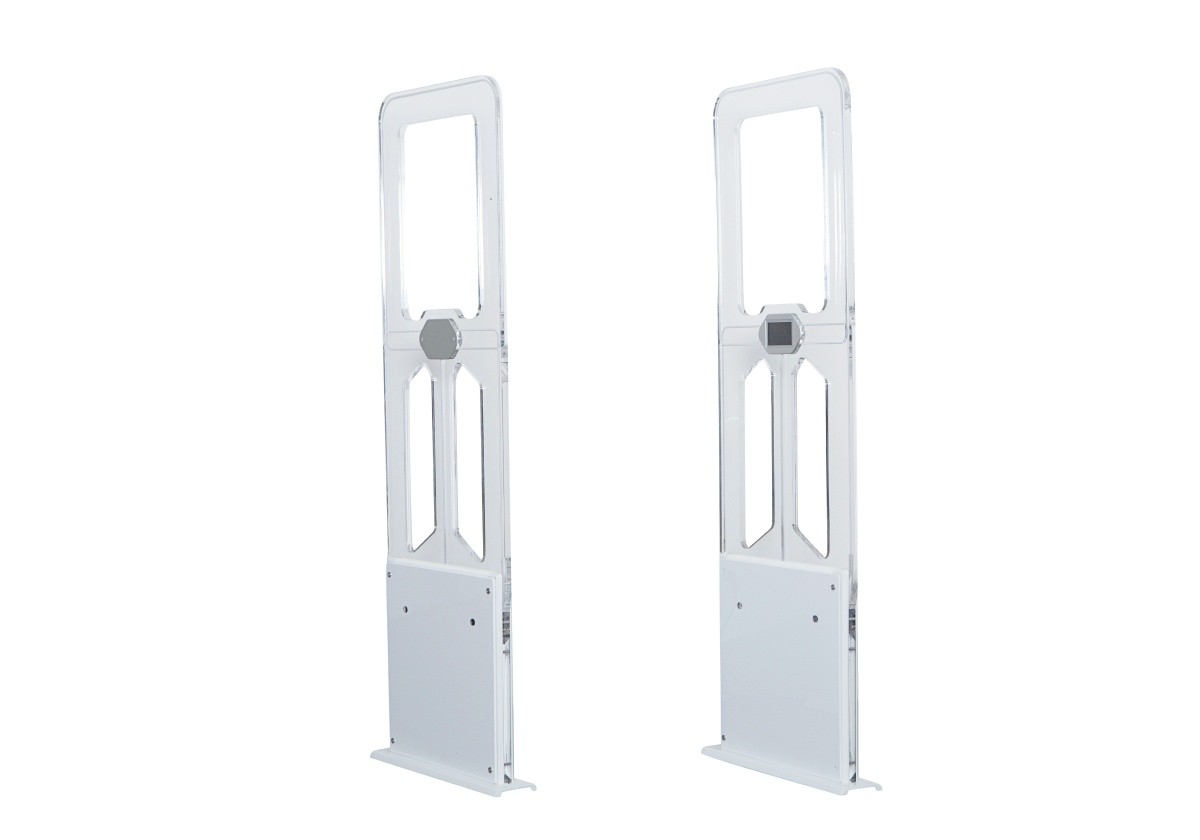

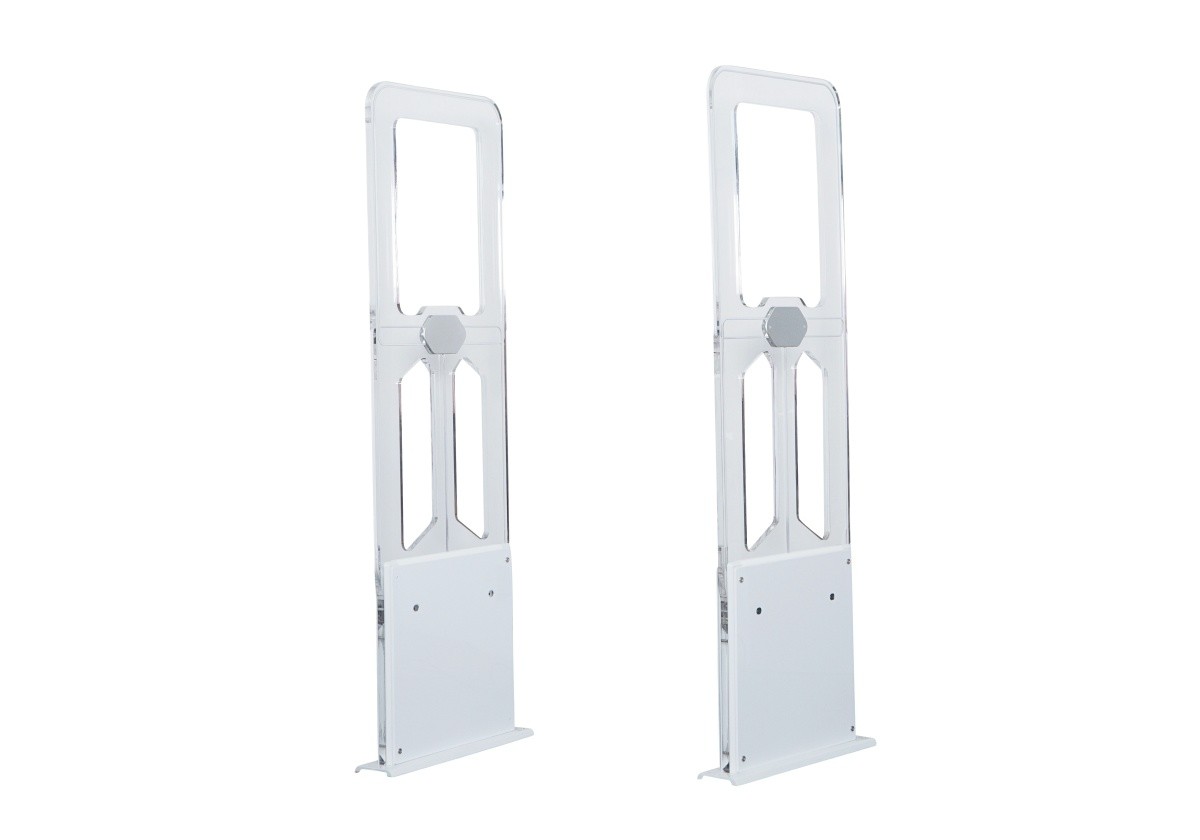

 The XLD‑DT010 library security gate adopts 3D sensing technology, which can rapidly detect electronic tags in any direction within the 3D sensing area.

 This device supports electronic tags manufactured by multiple manufacturers complying with the ISO15693 standard;

it supports both active and passive alarm modes, and provides AFI, EAS, EAS+AFI, DSFID and DSFID+EAS functions under the active alarm mode.

 This product is widely used in libraries, archives, import & export anti‑theft and other fields.

Frequency: 13.56MHz Protocol: ISO15693

 Display Function:

Equipped with a 4.3‑inch display screen, supporting display of date, time, personnel entry‑exit data, custom company logo, alarm information and gate quantity.

 Alarm Function:

Built‑in sound‑light alarm function; seven optional alarm light colors: red, orange, yellow, green, cyan, blue and purple.

 Alarm Light Display Modes:

1. Breathing light mode 2. Steady‑on mode upon alarm (one of two modes to be selected) Multi‑lane Combination: Supports

side‑by‑side installation of multiple gates and lanes at a single entrance/exit.

There is no dual‑lane limit for each group; multiple groups can be synchronously cascaded, with a maximum of 9 gates and 8 lanes supported.
