Image Enhancement Functions

Continuous magnification from 1× to 64×, color/black‑and‑white display, negative image,

high/low penetration, organic/inorganic material separation, general enhancement, pseudo‑coloring, etc.

Image Storage

Up to 100,000 images can be automatically stored, exported to a USB disk, and converted into six formats: JPG, BMP, XF, PNG, TIFF and GIF.

Image Playback All previous images can be accessed and retrieved.

Other Functions

Time/date display, counter, user management, system startup/X‑ray activation timer, power‑on self‑test,

built‑in diagnostic functions, bidirectional scanning, system log, system standby mode, simulation training, ADS, etc.

Network Applications

Based on Ethernet LAN and Windows platform, multiple remote applications are available optionally, such as

centralized image storage and identification, re‑inspection workstations, network TIP, etc.

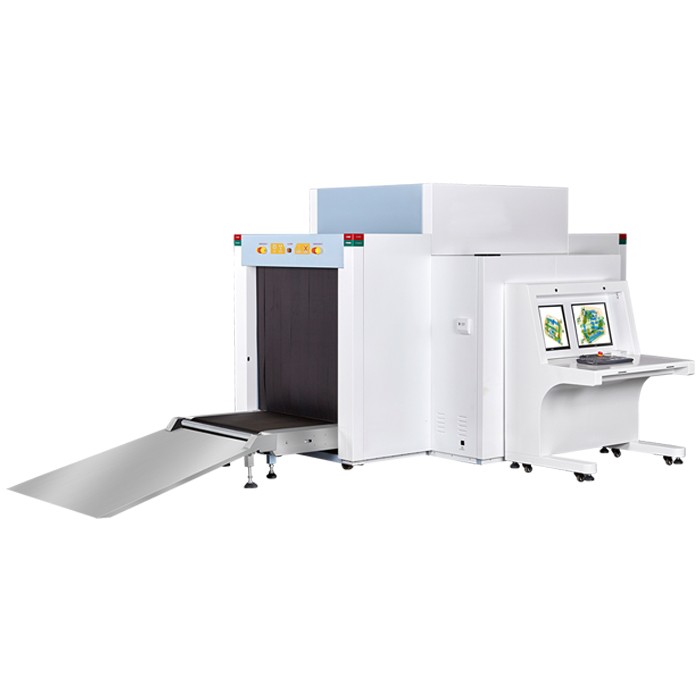

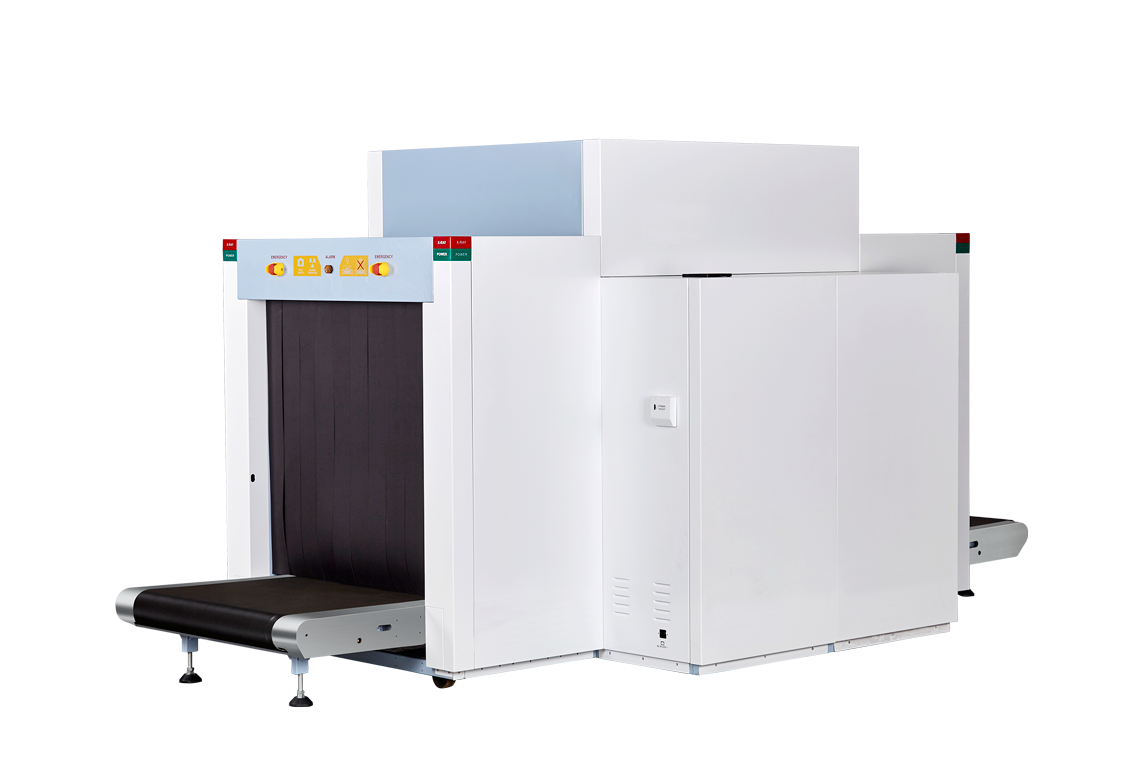

XLD‑100100D X‑ray Baggage Security Inspection Machine

The technical parameters of the XLD‑100100D X‑ray security inspection machine comply with the technical

requirements specified in the national standard **Micro‑dose X‑ray Security Inspection Equipment (GB15208‑94).
