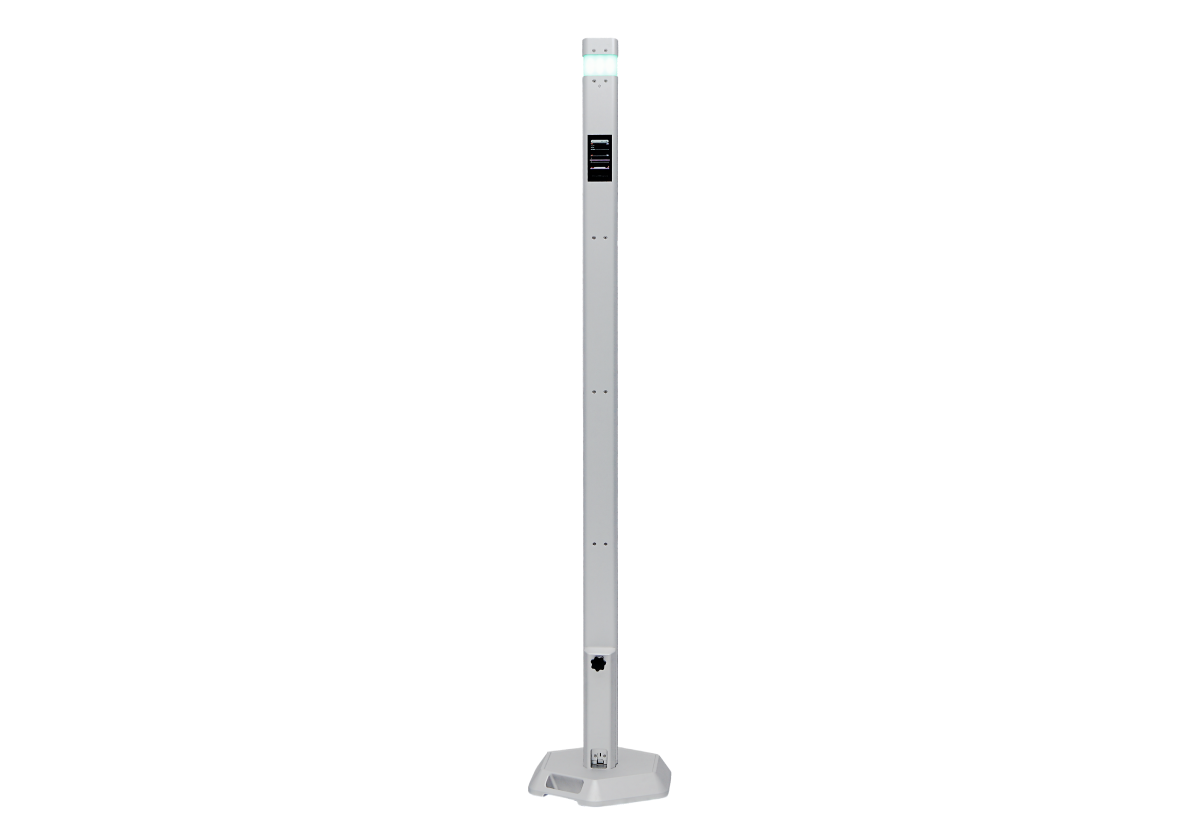

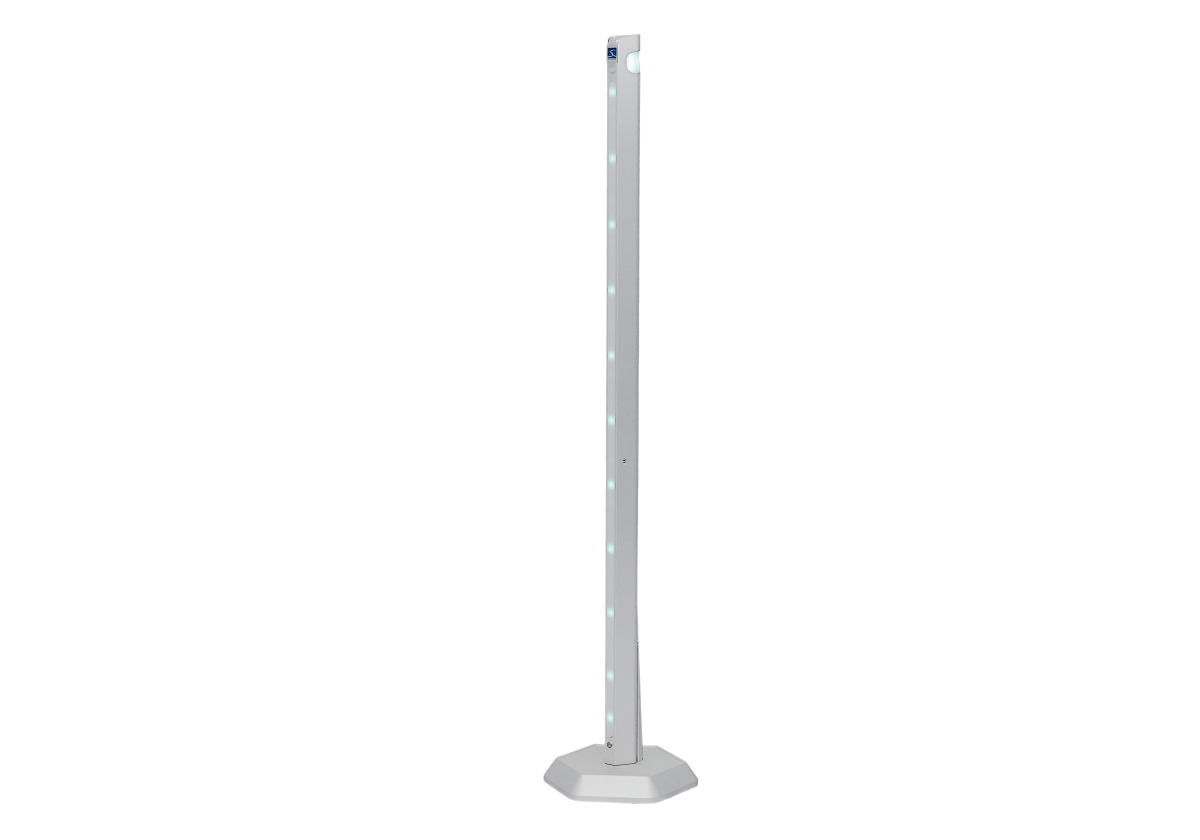

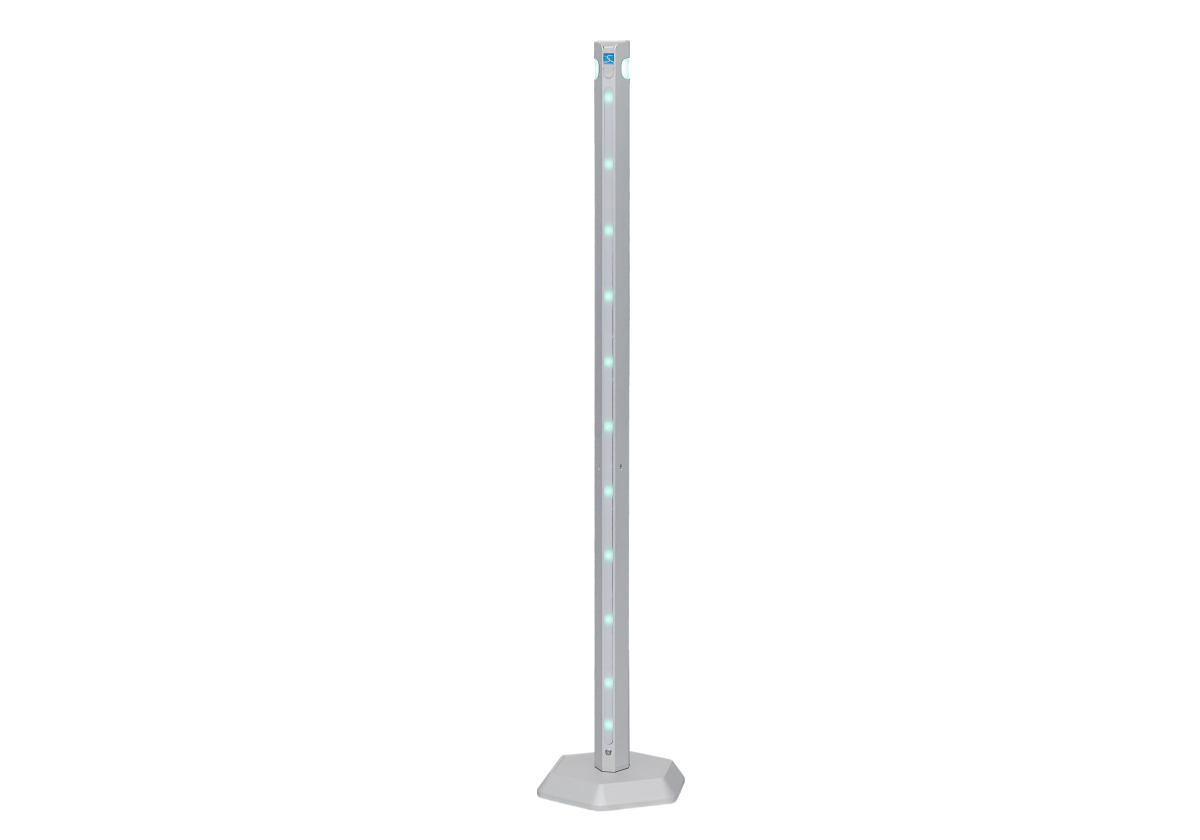

Intelligent Ferromagnetic Metal Safety Detection System
Intelligent Ferromagnetic Metal Safety Detection System
Intelligent Ferromagnetic Metal Safety Detection System
Intelligent Ferromagnetic Metal Safety Detection System
Intelligent Ferromagnetic Metal Safety Detection System
Intelligent Ferromagnetic Metal Safety Detection System
Intelligent Ferromagnetic Metal Safety Detection System
  • Parameters
  • Test Video
  • Operation Video
  • Characteristic
  • Download
  • Strength

Functions

A. Ferromagnetic Object Detection B. Real‑time Visual Intelligent Alarm

C. Three‑zone Positioning Function for Ferromagnetic Items

D. Network Mode: Graded Early‑warning Function

Power Supply

Input Power: AC 100~240V, 50/60Hz Charging Time: 5 hours

Battery Life: >24 hours Charging Port: Type‑C

Operating Temperature: -4℉~158℉ (-20℃~70℃)

Weight

Upright Weight: 5.9kg Base Weight: 15.8kg

Dimensions

Upright Height (H): 180cm Base Height (H): 7cm

Alarm Modes

A. Light Alarm (Red & Green Lights) B. Sound Alarm

C. Concealed Alarm (Optional)

Protection & Certification

IP Rating: IP65 Material: Aluminum Alloy

Certifications: CE, QMS (Quality Management System Certification)

1. Real‑time visual intelligent alarm. 2. High throughput efficiency: more than 60 people per minute.


3. High sensitivity reaching NT‑level, three‑zone positioning, capable of detecting ferromagnetic items.


4. Able to detect magnetic metals and non‑metallic objects.


5. Built‑in high‑capacity lithium battery, supporting continuous normal operation for over 24 hours.


6. Dual‑column networking mode with graded early‑warning function. (Light blue light indication,


yellow light early warning on mobile phone, red light alarm for controlled knives)


7. Concealed screening. Can be placed behind objects, doors or walls, compatible with smartwatch


alarms, and available for concealed design according to security environments.


8. Wide detection range, supporting 360° detection within a radius of 0–1.5 meters.


9. Non‑contact passive detection with low power consumption; no harmful electromagnetic waves emitted.
