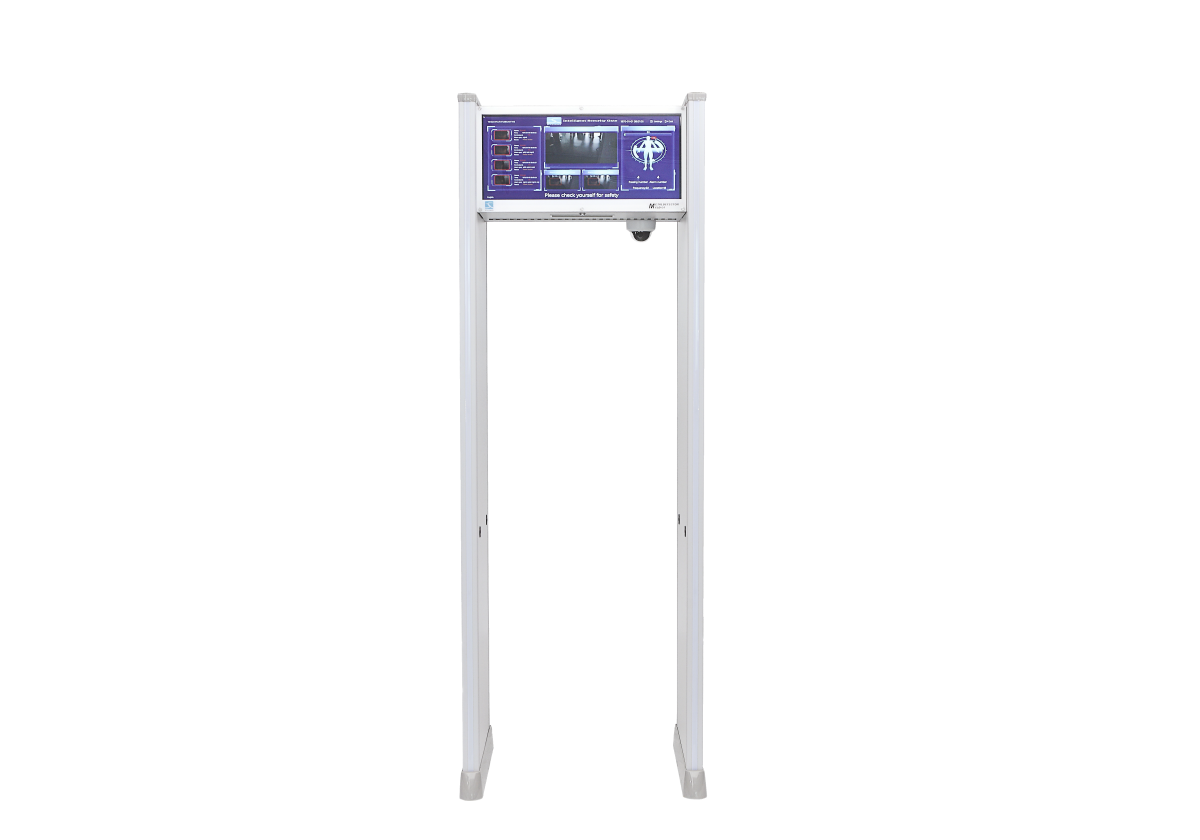

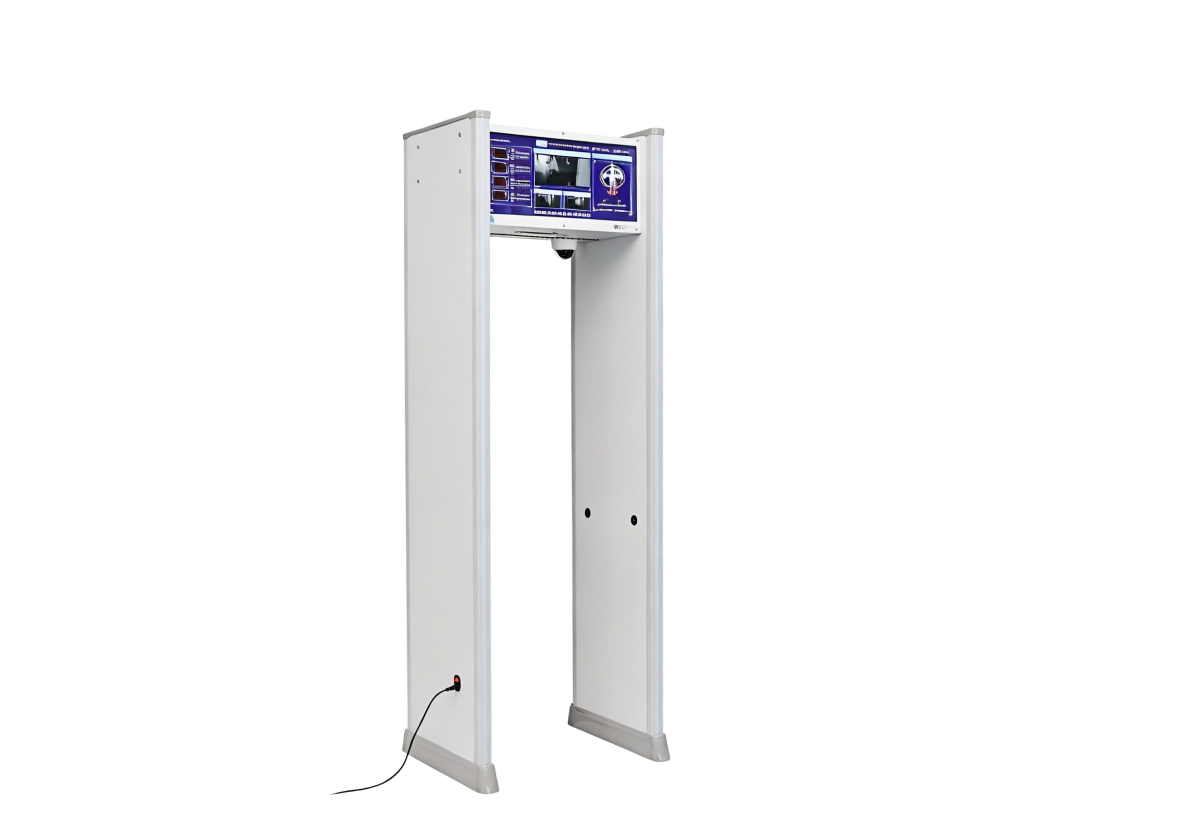

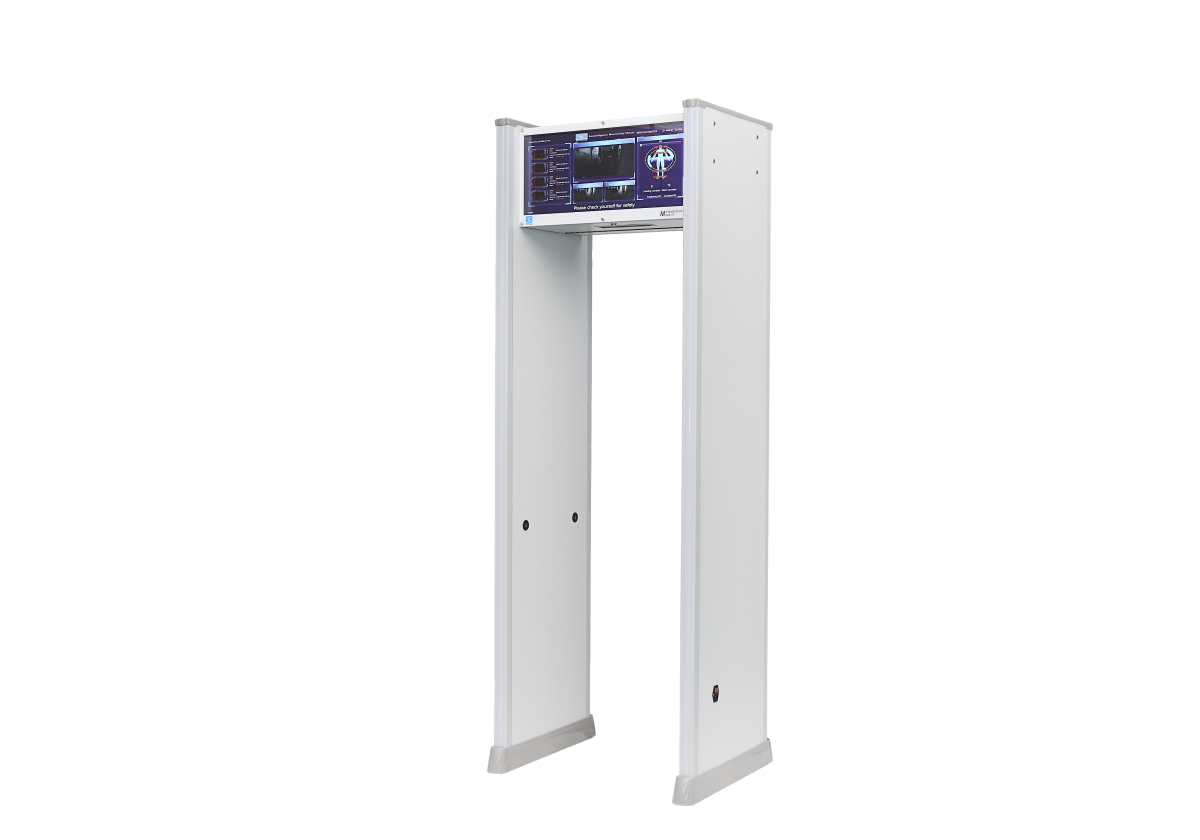

29-inch dual-screen mobile phone security door
29-inch dual-screen mobile phone security door
29-inch dual-screen mobile phone security door
29-inch dual-screen mobile phone security door
29-inch dual-screen mobile phone security door
29-inch dual-screen mobile phone security door
29-inch dual-screen mobile phone security door
  • Parameters
  • Test Video
  • Operation Video
  • Characteristic
  • Download
  • Strength

Operating temperature-20℃ +55℃


power supplyAC220V  f:50HZ


The weight of the whole machine72kg


power consumptionP≤<12.7w


Transmit frequency Multiple operating frequencies are available


Pass rateMore than 100 person-times/minute


Meets standardsGB15210-2003


Channel size1990mm(H) ×700mm(W)×580mm(D) Customizable


Dimensions 2220mm(H) ×833mm(W)×580mm(D)Customizable




Multi-zone detection6. 12 overlapping metal detection areas, using the current digital pulse technology,


interactive transmission and reception, divided into six protection areas, can accurately determine the specific


location of suspicious objects in each area (can be customized 18 areas).


FM functionLCD screenThe security gate is equipped with a two-way 29-inch high-definition LCD screen,


 which can display information including "the number of people who pass, the number of alarms,


 the location of the humanoid alarm, the time of the alarm, the pictures captured,


 and the information of the passing personnel" on the screen at the same time.


FM functionThe working frequency is 7000Hz-8999Hz, which can identify the interference frequency


 of the surrounding environment and make corresponding adjustments, effectively reducing the difficulty of equipment adjustment.
