XLD-AM04B EAS AM SYSTEM
  • Parameters
  • Test Video
  • Operation Video
  • Characteristic
  • Download
  • Strength

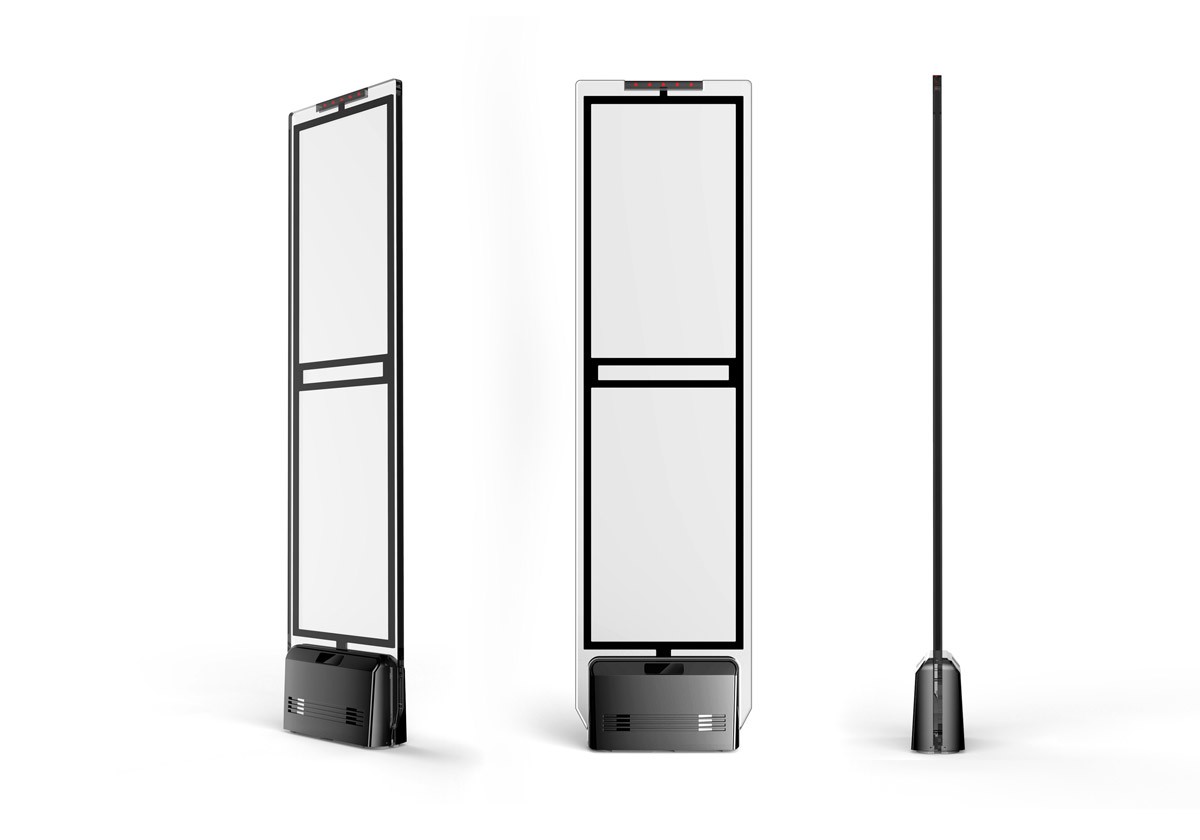

XLD-AM04B AM system
Alarm counting, remote controller.
Dimensions:1528*400*200mm
Equipment material:High strength acrylic
Gross weight:21KG/SET
Operating frequency:58KHz
Working voltage:110V/220V
Operating temperature:- 10℃~+ 40℃
Detection range:
DR soft label:70-80cm each side
39mm hard tag:140-160cm
50mm hard tag:160-180cm

Main Advantages:

1. Most advanced signal processing (DSP) technology;

2. Self-adapting multi-channel Frequency Hopping, 99% detection rates;

3. Strong anti-jamming capability;

4. Multiple anti-interference technologies;

5. Very professional and popular in Use in Fashionable Super store and Supermarket.


Technical Advantages: High strength acrylic body, elegant appearance, strong aging resistance, durable.

Among the detection antennas of the same kind, it has increased measurement range, strong anti-interference performance, applicable to various shopping places.

Automatic signal conditioning: the most advanced automated environmental monitoring program, auto-matching of system parameters, truly free from system adjustment.

Manual signal conditioning: capable of configuring the system manually in the complex field environment, strong adaptability.

Wireless synchronized signal technology:  capable of selecting different synchronization values by adjusting the frequency synthesizer, the interference on the frequency is staggered, and the channel is more broad.

High-precision digital filtering technology: fourth-order digital filter technology, multi-level filtering processing of signals, effectively improving the range and efficiency of tag detection.

100 MHZ high speed DSP digital signal processing, superior data processing performance, ensuring the sensitivity and stability of system detection.


Application places:

Supermarket, super mall, retail store, shoes store, clothes store, sports shop, hat shop, glasses store, jewelry store, pharmacy, cosmetic store, etc.
