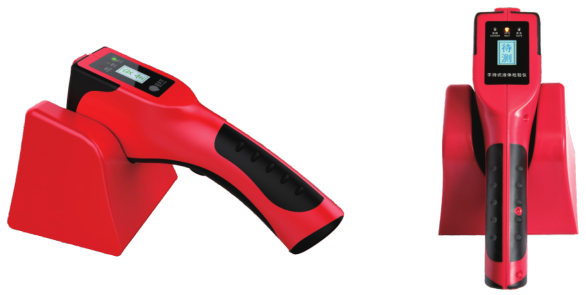

XLD-YT15 handheld dangerous liquid security detector, is a specialized for

detecting flammable and explosive liquid of the security instrument.

XLD-YT15 volume is small, the analysis is fast, easy to operate, can be not in

contact with the liquid in the case to quickly identify the flammable liquid, it is

widely applied to bus stations, subways, airports, public security government

agencies, major sporting events, and other places of security work.

Dimension: 216*50*79mm  Weight: 200g

Startup Time: 1 seconds  Analysis and testing time: about 1 second

Application: ≥5. 5cm*1.5 cm, Min 50ml bottle.
Alarm mode: Sound and LCD.


The man-machine interface: provides full Chinese interface, spontaneous light OLED screen display


Data storage: to provide a liquid detection result of the storage and retrieval function, the stored


amount of not less than 10000 times detection, and through USB interface to export the data to.


Operating temperature range: -10℃-+55℃。

Application: gasoline, kerosene, diesel oil, diethyl ether, diisopropyl ether, petroleum ether, acetonitrile,


ethylene glycol, nitrobenzene, propylene oxide, n-heptane, turpentine, acetone, benzene, toluene, xylene,


dichloroethane, ethanol, isopropanol, n-octane, carbon disulfide, methanol, Nitro methane, acetaldehyde,


chloroform, paint thinner, tetrahydrofuran, paint, n-hexane, styrene, cyclohexanone, cyclopentane, diethyl


amine, n-pentane, tert-butanol, acrylic acid methyl ester, n-propanol, cyclohexane, methyl tert-butyl ether,


1-4-dioxane II dioxane, and dipentene, butyric acid butyl ester, pyrrolidine, hydrochloric acid, rosin water,


bananas water, etc. forty a variety of flammable and explosive dangerous liquid.
