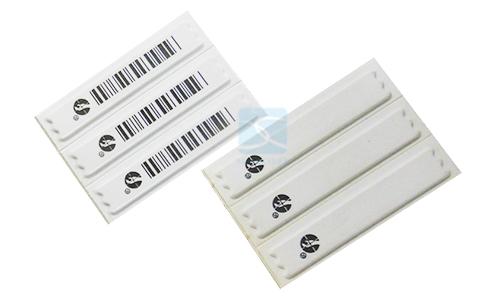

Appearance marks: LOGO + Barcode

Inspection frequency: 58KHZ

Specification: 45.21mm×10.67mm

Material structure:

Outer shell: polystyrene (0.3 mm thick)

Resonator: Amorphous magnetic materials (iron, cobalt, silicon)

Tablet: density polyethylene polyester (0.127 mm)

Adhesive: double-sided rubber adhesives, 0.140 mm thick in total, 80 oz/m minimum peeling strength

Lining mat: Double-sided silicon gasket

Applicable environment:

Temperature: -30 ºC ~ 65ºC

Storage life: no more than 196 hours under 65ºC and 80% humidity;

24 months under 15~32ºC and 50% humidity.

Bearing pressure:<445N

External magnetic field:<8 gaussian

Packing specification: 108pcs/plate, 5000pcs/box （285mm*200mm*118mm, 2.98kgs/box

Usag: Do not cover the product description.Paste without direction.
